UV BRIDGE

The UV BRIDGE CONSISTS OF FOLOWING:

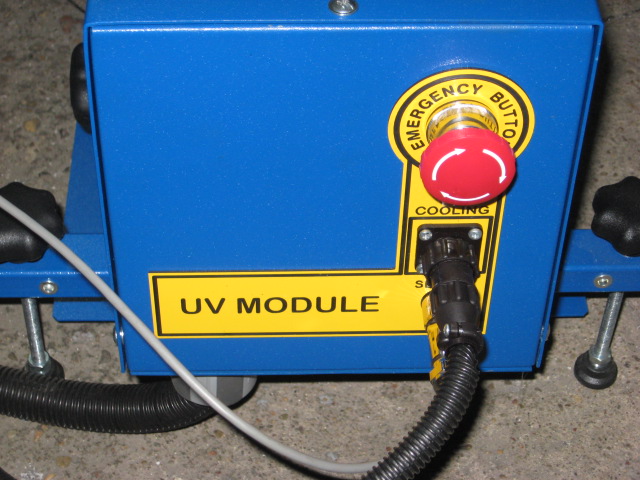

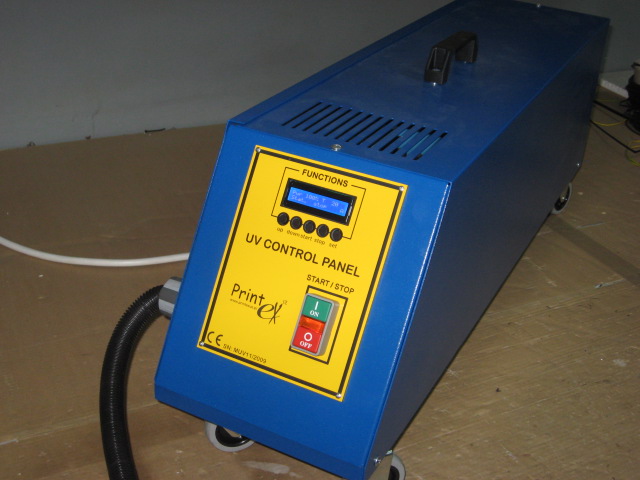

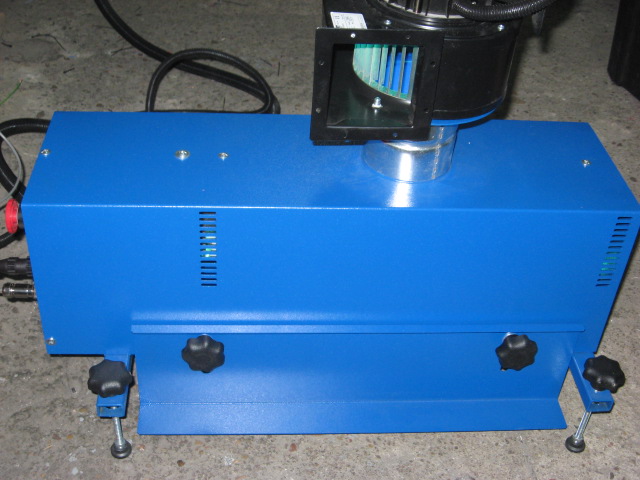

           UV POWER SUPPLY                                               UV MODULE                               UV COOLING FAN

 FEATURES & CHARACTERISTIC

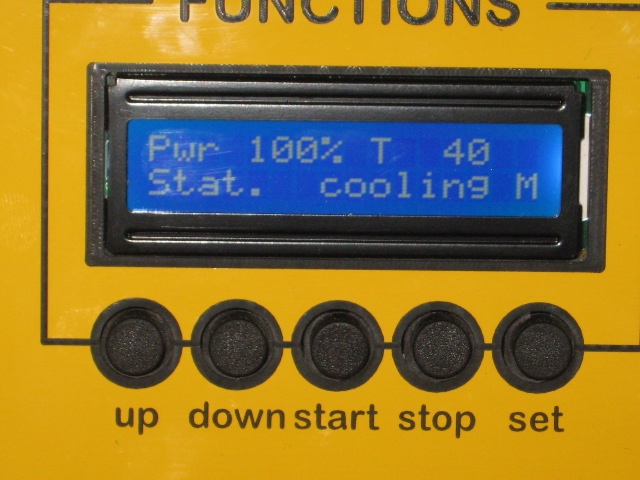

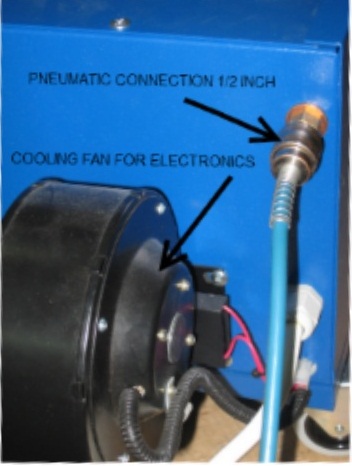

UV CONTROL PANEL                                             UV SETTINGS                    BACK OF UV POWER SUPPLY

• ELECTRONIC POWER CONTROL IN RANGE 100-50% with 5% INCREMENTS
• UV LAMP PARAMETERS MONITORING
• ADAPTATIVE COOLING AND OZONE EXHAUST
• UV LAMP SHUTTERING SYSTEM (PNEUMATICLY DRIVEN)
• EXTERNAL PHOTOSENSOR FOR SHUTTERS CONTROL, START/STAND BY CONTROL

 AVALIABLE MODELS:

UVB-24   24" lamp length, 7.2 KW 400 VAC 3 PH, CONVEYOR BELT APPLICATION DRAWING

UVB-30   30" lamp length, 9.2 KW 400 VAC 3 PH, CONVEYOR BELT APPLICATION DRAWING

UVB-38   38" lamp length, 11.2 KW 400 VAC 3 PH, CONVEYOR BELT APPLICATION DRAWING

UVB-48   48" lamp length, 14.6 KW 400 VAC 3 PH, CONVEYOR BELT APPLICATION DRAWING
